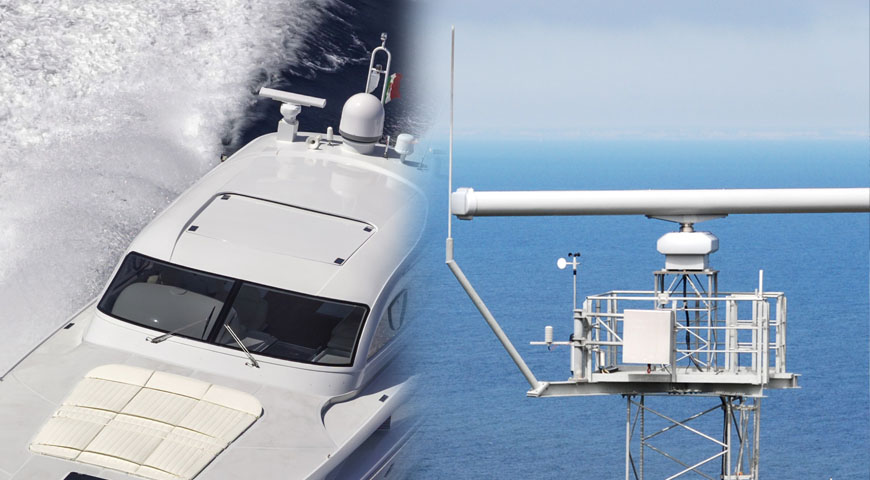

Powering maritime, ground-based and airborne radar systems keeping crew, cargo and passengers safe around the world.
E2V X-BAND MAGNETRONS
e2v X-Band Magnetrons from 1.5 – 25kW at a frequency range between 8870 – 9680 MHz
MG54368 | ||
POPULAR MODELS
e2v MG5436 Magnetron
e2v MG5424 Magnetron
| GEN3 X-BAND MAGNETRONS | ||
|---|---|---|
| TYPE | POWER | FREQUENCY |
| MG5244* | 12.5kW | 9345-9405 Mhz |
| MG5255 | 6kW | 9380-9440 Mhz |
| MG5256 | 12.5kW | 9415-9460 Mhz |
| MG5257 | 12.5kW | 9380-9440 Mhz |
| MG5258* | 12.5kW | 9380-9440 Mhz |
| MG5273 | 6kW | 9380-9440 Mhz |
| 9M602 | 12.5kW | 9380-9440 Mhz |
| GEN3 X-BAND MAGNETRONS | ||
|---|---|---|
| FLAT PACK-70MM BASEPLATE | ||
| TYPE | POWER | FREQUENCY |
| MG5331 | 4kW | 9380-9440 Mhz |
| MG5353 | 1.5kW | 9380-9440 Mhz |
| MG5388 | 4kW | 9380-9440 Mhz |
| MG5388C | 4kW | 9380-9440 Mhz |
| MG53885 | 4kW | 9380-9440 Mhz |
| MG5389 | 6kW | 9380-9440 Mhz |
| GEN3 X-BAND MAGNETRONS | ||
|---|---|---|
| FLAT PACK-135MM BASEPLATE | ||
| MG5233 | 8kW | 9380-9440 Mhz |
| MG5234 | 6kW | 9415-9475 Mhz |
| MG5238A | 4kW | 9415-9475 Mhz |
| MG5251 | 8kW | 9380-9440 Mhz |
| 9M302 | 4kW | 9380-9440 Mhz |
| MG5233 | 8kW | 9380-9440 Mhz |
| MG5238A | 4kW | 9415-9475 Mhz |
| MG5251 | 8kW | 9380-9440 Mhz |
